| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | RUIJIA |
| إصدار الشهادات: | CE |
| رقم الموديل: | الملكية الأردنية |

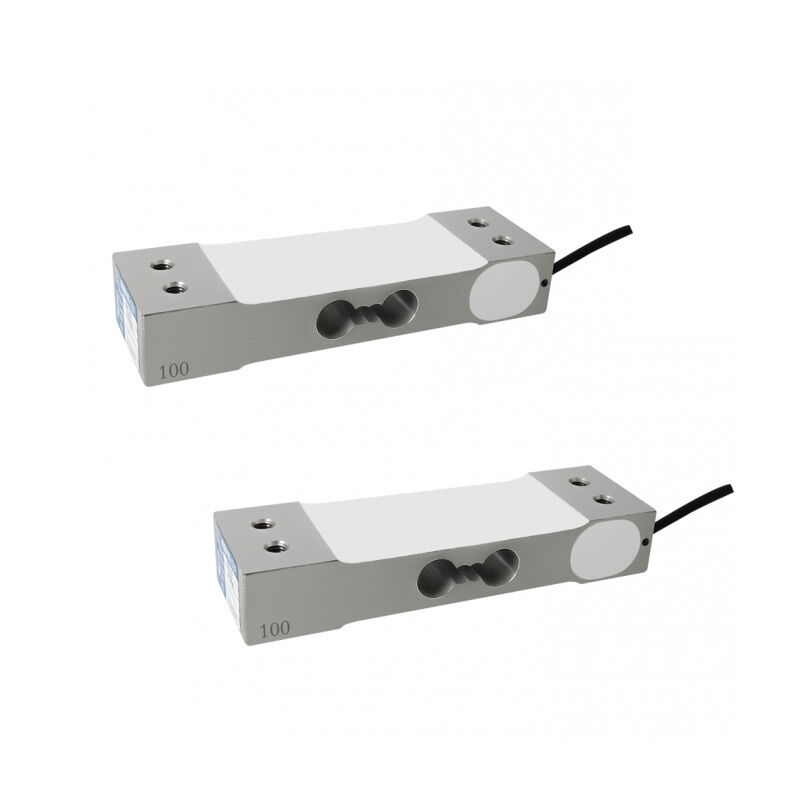

Load cell is a OIML Approved single point load cell with aluminum alloy material and surface anodized, suitable for a wide range of weighing scales. The OIML C3 Sensor is potted and silicone sealed construction, protected to IP66, provides a cost-effective solution that is approved to OIML C3 (3000 divisions).
Key Features:
High accuracy OIML approved
Calibrated to national standards
Aluminum alloy construction
Easy to install
Usage & Applications:
price computing scales
counting scales
weighing scales
retail scales
Dimension:
Specification:
| Rated Capacities | 40,60,100,200 (kg) |
| Rated Output | 2.0 mV/V±10% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02 %R.O. |
| Hysteresis | 0.02 %R.O. |
| Repeatability | 0.02 %R.O. |
| 30mins Creep | 0.02 %R.O. |
| 30mins Return | 0.02 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.002 %R.O./℃ |
| Temperature Effect On Zero | 0.003 %R.O./℃ |
| Input Impedance | 410±15 Ω；1130±30 Ω |
| Output Impedance | 350±5 Ω； 1000±10 Ω |
| Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Aluminum Alloy |
| Protection Class | IP66 / IP67 |
| Cable | φ4×0.5m |
| Recommended Platform Size | 350×400 mm |
| Mode of Connection | Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
