| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | RJ |
| إصدار الشهادات: | CE/ROSE |
| رقم الموديل: | الملكية الأردنية |
Capacity: 3Ton to 30Ton
Accuracy: C2

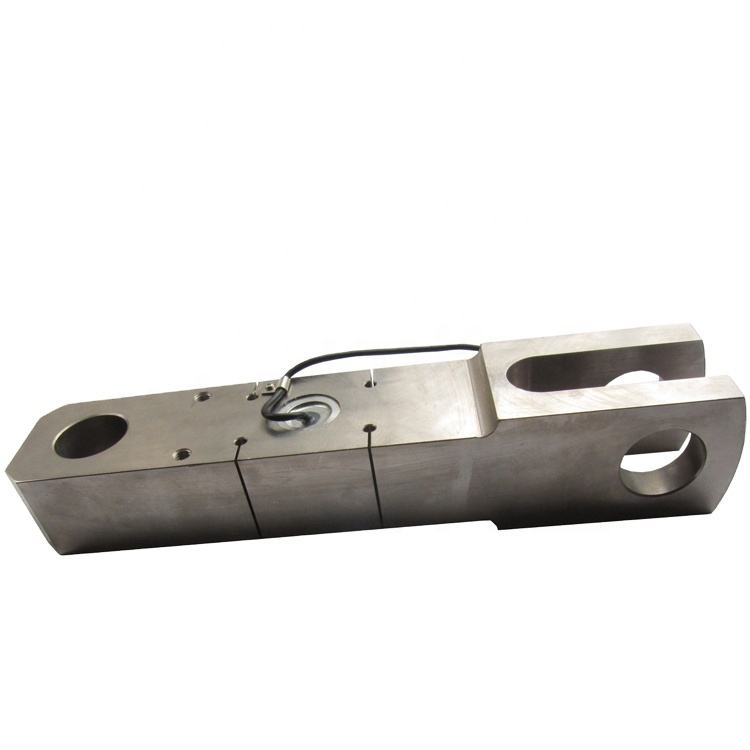

Application: Crane scale
Material: Alloy steel
Feature: Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments
Parameter:
|
Application |
Crane scale |
|
Model |
RJ |
|
Capacity |
3T, 5T, 10ton, 20ton, 30ton |
|
rated output |
2.0±0.02mV/V |
|
Accuracy class |
C2 |
|
maximum number of verification intervals |
2000Nmax |
|
Minimum loadcell cerification intervals |
Emax/5000 Vmin |
|
Combined error |
≤±0.030 % RO |
|
Creep |
0.02%RO/30min |
|
Temp. effect on sensitivity |
0.0016 %RO/℃ |
|
Temp.effect on zero |
0.0026%RO/℃ |
|
Zero balance |
±1.0 %RO |
|
Input resistance |
380±5 ohm |
|
Output resistance |
350±3 ohm |
|
insulation resistance |
5000 MΩ(50V) |
|
Recommended excitation voltage |
5-15V |
|
Compensated temperature range |
-10-+40℃ |
|
operating temperature range |
-35-+80 ℃ |
|
safe overload |
150 %RO |
|
Ultimate overload |
200%RO |
|
loadcell material |
Alloy steel |
|
Connecting cable |
Φ5.7x0.5m |
|
Method of connecting wire |
Red- input+, black- Input-. Green- Output+, White- output - |
