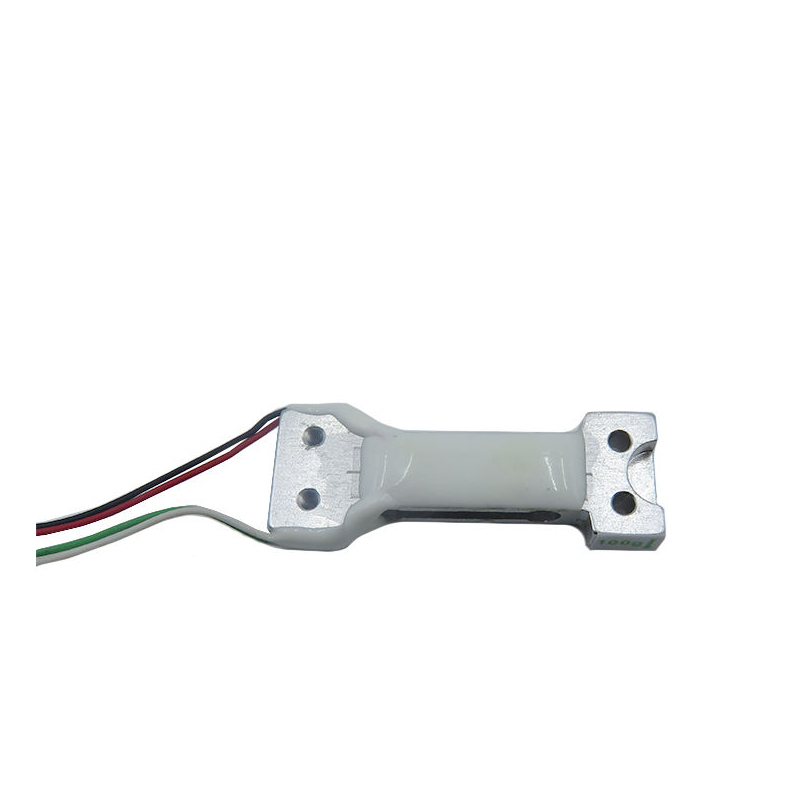

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy

Name: 50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy
Brand: Xian Ruijia Measurement Instruments Co., Ltd.
SKU: الملكية الأردنية
Price: 7.00 USD
Availability: InStock

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	RJ
إصدار الشهادات:	CE/ROSE
رقم الموديل:	الملكية الأردنية

معلومات مفصلة

مكان المنشأ:

الصين

اسم العلامة التجارية:

إصدار الشهادات:

CE/ROSE

رقم الموديل:

الملكية الأردنية

الاستخدام:

وزن

الوصف:

مستشعر وزن ذو نقطة واحدة

السعة:

3 ~ 120 كجم

غير الخطية:

0.03٪ فس

التكرار:

0.03٪ فس

مقاومة المدخلات:

405 ± 6Ω

إبراز:

High Light

إبراز:

50KG compression load cell,high accuracy load cell sensor,weighing load cell 0.03%FS

high accuracy load cell sensor

weighing load cell 0.03%FS

معلومات التداول

الحد الأدنى لكمية:

الأسعار:

$5-10

تفاصيل التغليف:

كرتون أو قفص خشبي

وقت التسليم:

5-8 أيام عمل

شروط الدفع:

L / C ، D / A ، D / P ، T / T ، ويسترن يونيون

القدرة على العرض:

2000 قطعة / شهر

وصف المنتج

Compression Load 4 Wire Temperature Transmitter With Sensor Laod Cell

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 0

Specifications
Rated Output	mv/v	2.0±0.2
Non-linearity	%F.S	0.03%F.S
Hysteresis	%F.S	0.03
Repeatability	%F.S	0.03
Creep	%F.S/3min	0.03
Temp.effect on zero	%F.S/10℃	0.03%F.S
Temp.effect on span	%F.S/10℃	0.05%F.S
Zero balance	mv/v	±0.05
Input impedance	Ω	405±6
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥2000(100VDC)
Recommended excitation voltage	VDC	3~12
Allowed excitation voltage	VDC	3~12
Compensated temp.Range	℃	-10℃~+40℃
Operating temp.Range	℃	0℃~+40℃
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: Red:+ Black:-
Connection	Signal: Green:+ White:-

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 1

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 2

Packing & Transport

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 3

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
